Angle:15°C 25°C 30°C 40°C
Categories: single bearing
Accuracy: P0, P2, P4, P5, P6

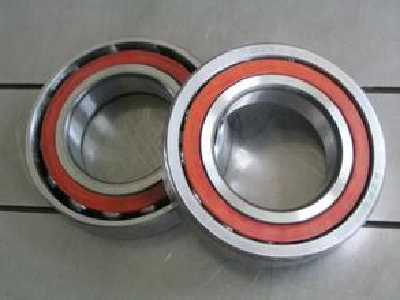

Wokost angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row Conrad bearings can accommodate thrust in both

Details

Angular contact ball bearing is a bearing, it can bear radial load and axial load at the same time.Can work under high speed.The larger the contact Angle, the higher the axial bearing capacity.High precision and high speed bearing contact Angle usually take 15 degrees.Under the effect of axial force, the contact Angle increases.
Angular contact ball bearing type:
The type 7000 c (∝ = 15 °), type 7000 ac (∝ = 25 °) and 7000 b (∝ = 40 °).

Installation techniques:
High speed precision angular contact ball bearing, mainly used for high speed rotating load lighter, bearing the high accuracy, high speed, low temperature rise low vibration
And certain service life.Often for high speed motorized spindle bearing parts installed in pairs, is the key to the high-speed motorized spindle surface grinding machine fittings.
Cage: made of brass, synthetic resins, according to the bearing form, the conditions of use and distinguish.
Using precision grades of angular contact ball bearing:
From low to high precision is expressed as P0 (ordinary), P6 (P6X), P5, P4, P2.In addition, in the European and American brands also expressed in P3, P7 and P9 precision
Level, P3 level equivalent to ISO and JIS standard P6, P7 is equal to the P4 level, P9 level equal to P2.
Angular contact ball bearing installation in pairs:
Installation Angle contact ball bearing in pairs can afford to two-way joint mainly consisting of radial load, axial load, also can withstand pure radial load.
1.Rear back-to-back configuration, code-named DB (such as 70000 / DB) installed back to back bearings provide relatively high bearing configuration rigidity, and can be Under negative moment.
2.Rear face to face configuration, code-named DF (such as 70000 / DF) this configuration rigidity and the ability to withstand the overturning moment than the DB configuration form, the bearing can be subject to bi-directional load
3.Rear tandem configuration, code-named DT (such as 70000 / DT) this configuration can also be in the same series of three or more bearing support, but only bearing.

The single direction axial load.Usually, in order to balance and limit shaft axial displacement, another supporting point should be installed to withstand another direction axial load
Load bearing, and accept non-standard customized bearings.
Size Range:
Single-row: 10 mm - 150 mm (0.3937 in. - 5.9055 in.) bore
Double-row: 12 mm - 150 mm (0.4724 in. - 5.9055 in.) bore
Design Attributes:
Specific geometry of angular contact bearing raceways and shoulders creates ball contact
angles that support higher axial loads.
Expanded options include special lubricants, cage materials, preloads and coatings for
additional corrosion resistance.

Applications
Angular contact ball bearings are engineered for use in high-speed, high precision
applications for:
Agriculture.Chemical.General industry.Utilities
