- Place of Origin: jinan
- Brand Name: WOKOST

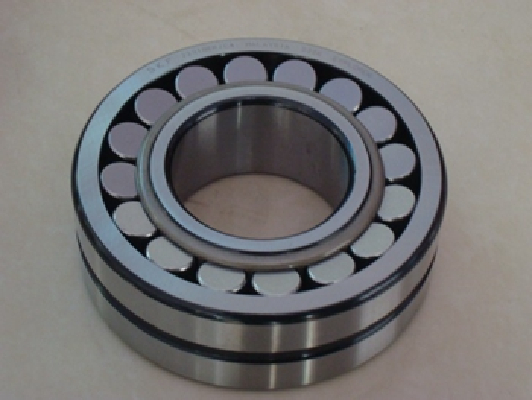

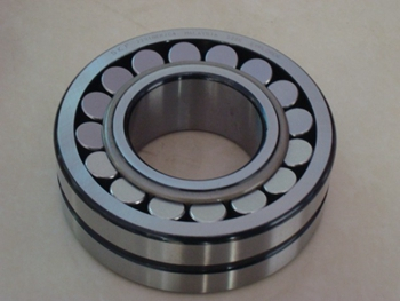

- Model Number: 22326 MB C3
Spherical roller bearing has two columns of roller, mainly bear radial load, but also can carry axial load in either direction. Have high radial load capacity, especially suitable for overloading or under vibration loading work, but can't afford to pure axial load. This kind of bearing outer ring raceway is spherical shape, so the self-aligning performance is good, can compensate the alignment error.
Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis.
The centre point of the sphere in the outer ring raceway is at the bearing axis.
Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can becaused, for example, by shaft deflection.
Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
Self-aligning roller bearing post code:
1, spherical roller bearings (20000 CC)
2, conical bore self-aligning roller bearing type 20000 (CCK)
3, spherical roller bearings (20000 CC/W33 type)
4, taper hole spherical roller bearings (20000 CCK/W33 type)
5, in a tight sleeve hole on the spherical roller bearings (20000 H0000 CCK)
6, in a tight sleeve hole on the spherical roller bearings (20000 CCK/W33 H0000 type)
Cage:
Stamping steel cage (suffix E), glass fiber enhanced polyamide 66 cage (suffix TVPB) entities,
machined brass cage (suffix M), vibration occasions stamping steel cage (suffix JPA)
Application:
Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill ,rolling mill rolls, crusher, vibrating screen, printing machinery,
woodworking machinery, all kinds of industrial reducer, vertical arrange ushering self-aligning bearing.
- Place of Origin: jinan
- Brand Name: WOKOST
- Model Number: 22326 MB C3
